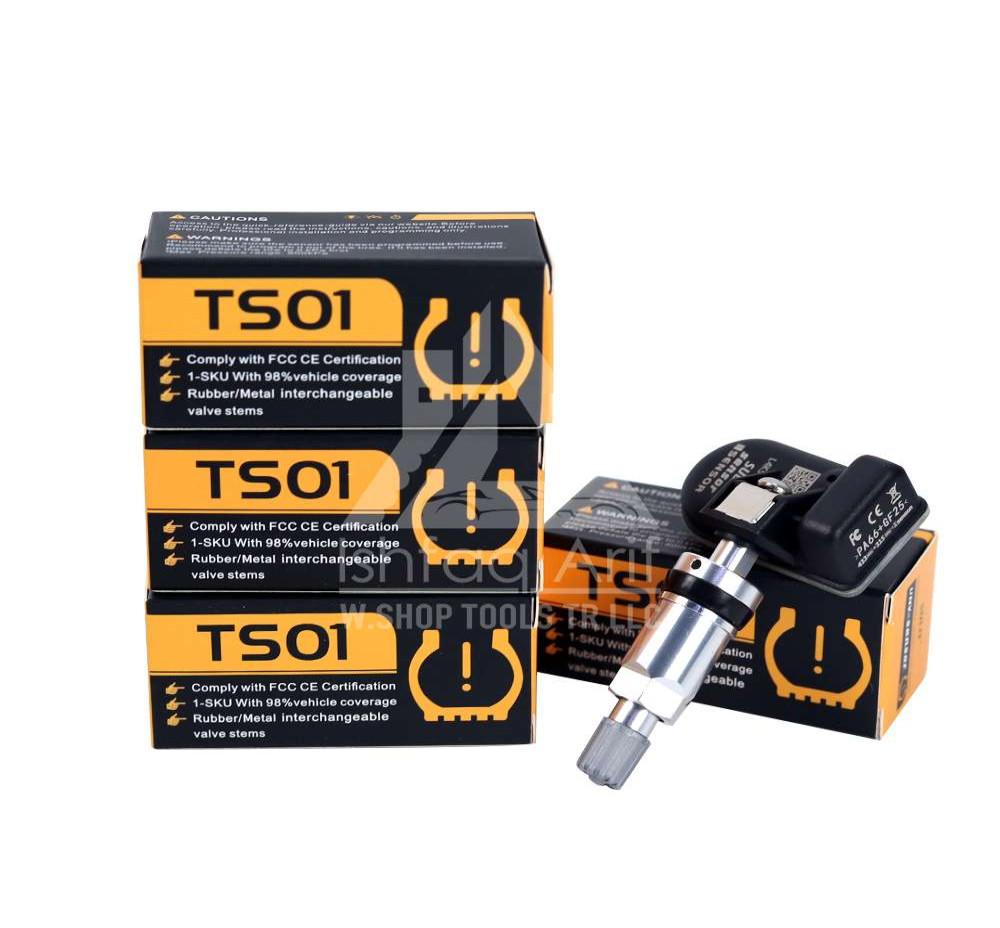

CGSULIT TS01 Programmable TPMS Sensor
TS01 is programmable universal TPMS sensor, it combines both 315MHz + 433MHz frequencies into one TPMS sensor with the highest industry vehicle coverage. It is built to perform like OE sensors in terms of signal, durability and functionality. TS01 is 100% clone-able with CGSULIT latest wireless TPMS programming tool TPMS80 and no relearn required.
⦁ It combines both 315 MHz and 433 MHz applications in one sensor
⦁ Allows interchangeable rubber and metal valves.Programmable with Autel’s TPMS Service Tool
⦁ It is built to perform like OE sensors in terms of signal, durability and functionality.
⦁ 100% clone-able with CGSULIT TPMS programming tool TPMS80 and no relearn is required.
⦁ Superior battery life (more than 5 years) and reliability to match OE sensor battery performance.
⦁ With the unique series number, the sensor quality can be tracked from factory manufacturing
Specification:
- Battery Life >5 years
- Operating Temperature -40°C to +125°C
- Storage Temperature -40°C to +150°C
- Operating Humidity 90%
- Operating Frequency 433 MHz/315MHz
- Pressure Monitoring Range 100 to 900 kPa
- Pressure Reading Accuracy ±10 kPa
- Temperature Reading Range -40°C to +125°C
- Temperature Reading Accuracy ±5°C
- Sensor Reading Accuracy ±15%
- Transmission Power 5-8 dBm
- Battery 3.0 V
- Dimensions 55.1 x 29.4 x 21.8 mm
- Weight 19.3 g (Without Valve)
Package includes:
16pcs TS01 TPMS Sensor* 1 box
Photo reference ( can copy directly)
