SIMPLEDIAG - The future of user-friendly features

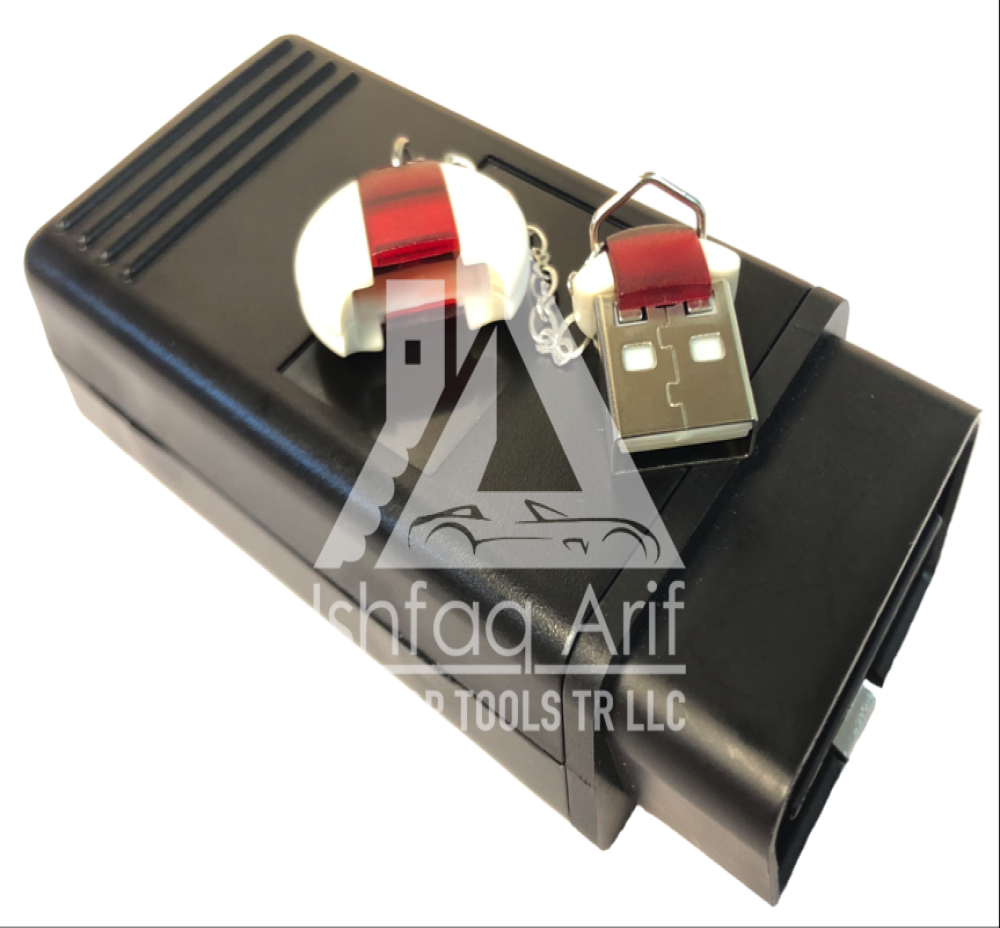

NOTE : IN 350$ YOU WILL GET ONLY THE HARDWARE ALL ACTIVATION WILL BE CHARGED AS PER YOUR CHOICE.

 This interface is designed to help the user quickly and easily do the job they need. Different features can  be  activated depending on what one needs. All software is designed so  that  the  user  without  much  thought within seconds can do what he's got.

We release new updates very often and all our software have automatic updates. Thus you can be sure you are always using the latest version of the app.

We have updated our minimum system requirements in order to keep up with the latest technologies.

Our software requires minimum Windows 7 with Service Pack 1 installed and .NET minimum version 4.7.2



Licenses for SIMPLEDIAG:

SD01 -> HD PIN Code reading

With this license you can calculate the necessary codes and program the keys for the Harley-Davidson models:

• Dyna 2007-2017
• Softail 2006-2017
• Sportster 2007-2017
• Street 2014-2017
• VRSC 2006-2017

SD02 -> Video In Motion and CarPlay – activation, deactivation and HU5.5 coding

NTG5.xx - 2014-2017

• C-Class - W205
• C-Class - S205
• S-Class - W222
• S-Class - V222
• S-Class Coupe - C217
• Vito&Viano - W447



NTG5.5 - 2016-2017

• E-Class - W213



CarPlay - NTG 5.1 - 2015-2017

• A-Class - W176
• B-Class - W246/W242
• C-Class - W204
• GLK – Class – X204
• E-Class - W212
• CLS-Class - W218
• CLA-Class - W117
• GLA-Class - W156
• ML/GL-Class – W166/X166
• GLE-Class - W166
• GLE-Class - W292
• GLS-Class - W166



HU5.5 Coding

Change coding values: Wireless Power Transfer, Antitheft Code, Driving program

                                                Type  AMG,   Car  Data  Visualization  Telemetry,   CarPlay

                                                Remote  UI  Services,  CarPlay,  Engineering  Menu,   AMG,

                                                AMG Sport, MirrorLink, Remote UI



SD03 -> Extreme MB renew tool



     With this software you can read service hash and calculate dealer hash all automaticly in seconds and you can  renew  the  units.







     Supported are ALL FBS3 components – EZS/EIS, ESL/ELV, TCU(7G),    CVT(722.8), ISM, DSM, ECU :

•
  BOSCH CDI-1 (EDC15C5)

BOSCH CDI-2 (EDC15C6)

BOSCH CR3.xx (EDC16)

BOSCH CR4.xx (EDC16)

BOSCH CR5.xx (EDC16)

BOSCH CR6.xx (EDC16)

BOSCH CR60.xx

BOSCH ME2.8

BOSCH ME9.7

BOSCH MED17.7.x

CONTINENTAL CRR1

CONTINENTAL SIM271DE

DELPHI CRD1.1

DELPHI CRD2.xx

DELPHI CRD3.xx

SIEMENS SIM266

SIEMENS SIM271KE

SIEMENS SIM4LE

SIEMENS SIM4LKE

• ESL/ELV :
  Old Motorola (W202, W208, W210)
  New Motorola (W203, W209, W211, W639, W906)
  NEC (W639, W906)
  NEC (W204, X204, W207, W212)
  NEC (W169, W245)
• EZS/EIS - All FBS3 types
• SRS Airbag Crash Clear ( for the moment only by dump ). Supported units are:
  W168, BOSCH, Motorola MC68HC11KA, Part Nr: 0285001222-0018203126
  W171, TEMIC, Motorola 3K91D, Part Nr: 1718202426
  W203, BOSCH, Motorola, Part Nr: 0018209726
  W203, BOSCH, Motorola HC12B32 (912BE32), Part Nr: 0285001373
  W204/W207, CONTINENTAL, 25C640, Part Nr: 2079011800
  W204/W207, CONTINENTAL, 95128, Part Nr: 2079012500
  W204/W207, SIEMENS VDO, 95640, Part Nr: 2048202285
  W211/W219, BOSCH, CR16, Part Nr: 0285010146
  Citan, CONTINENTAL, 95160, Part Nr: any
• For CVT (722.8) you can program original and current VIN and transfer coding
  from old to new CVT



STEP 1 -> Read the original information from the unit

STEP 2 -> Put the calculated password and make the module new

STEP 3 -> The module is new now

SD05 -> SCN Tool. Vmax change for Delphi CRD1.xx; CRD2.xx; CRD3.xx

Vmax change for Delphi CRD1.xx; CRD2.xx; CRD3.xx

SD07 -> Delphi/Bosch ECU Tool

With this tool you can read and modify data in CDI controllers.

SD08 -> Radio PIN code reader via OBDII for Renault, Dacia and SMART 453 models

Automatically reads the serial number of the radio and calculates the code

SD09 -> AMG Activator for MB

• KI 164 ->  ML(W164); GL(X164)
• KI 203 -> C(W203); CLK(W209)
• KI 211 -> E(W211); CLS(C219); CLK(W209); G(W463)
• KI 221 -> S(W221); CL(C216)
• IC 204 -> C(W204); GLK(X204); SLS(W197); SL(W231); E(W212); CLS(W218)
• IC 172 -> G(W463 2013-2017); GLS/ML/GLE(W166/292); A/GLA/CLA(W117/156/176); B/GLK  (W246/X204); SLK/SLC(W172); SL(R231)
• IC 222 -> C/GLC(W205/253); C/GLC Facelift(W205/253); S/CL(W222/217);             Maybach(V222); AMG GT(C190)
• IC 222 -> W217/222 pre facelift up to 2016
• IC 222 -> W217/222 pre facelift 2016+
• IC 213 analog -> S/CL(W222/217)  Facelift; G(W463 - 2018+); E/CLS/E cabrio(W213/238/257); C/GLC(W205/253 facelift only small LCD)
• IC 213 FULL LCD-> S/CL(W222/217) Facelift; G(W463 - 2018+); E/CLS/E cabrio(W213/238/257); C/GLC(W205/253 facelift)
• HU5 -> W222/205/447/470 before facelift
• HU5S1 -> W117/156/176/166 W463/292/231 facelift
• HU55 -> W213/238/257; W463 - 2018+ W205/253/217/222 facelift     GT 4 door - X290
• HU6 -> W118/177/167/247; W213/238/257 facelift



SD13 -> MB Dash Renew



       MB Dash Renew - Basically this software is designed for customers who want to make renew of MB instrument clusters. Once the cluster is in "virgin state" - the kilometers are zero and drive authorisation data is also reset (in other words - synchronization between Instrument clusters and EZS (FBS3 or FBS4 is broken).



      The following functions are available in the software:



• Read/Write eeprom by OBDII or on bench (Also standalone without Gateway on bench for some clusters)
• Renew IC function
• Learn IC function
• Read SSID from EZS



        Dashboards can also be learned with DAS/Xentry after renew procedure.The new LCD clusters are also powered up on bench with functions to see real Picture              when working on bench.

• KI 164 ->  ML(W164); GL(X164) -> Year (2006-2010) ->
• KI 203 -> C(W203); CLK(W209) -> Year (2006-2010) ->
• KI 211 -> E(W211); CLS(C219); CLK(W209); G(W463)  -> Year (2005-2010) ->
• KI Low -> A(W169); B(W245) -> Year (2005-2011) ->
• KI 221 -> S(W221); CL(C216) -> Year (2005-2013) ->
• IC 204 -> C(W204); GLK(X204); SLS(W197); SL(W231); E(W212); CLS(W218) -> Year (2007-2018) ->
• IC 172 -> G(W463 2013-2017); GLS/ML/GLE(W166/292); A/GLA/CLA(W117/156/176); B/GLK  (W246/X204); SLK/SLC(W172); SL(R231) -> Year (2011-2019) ->
• IC 222 -> C/GLC(W205/253); C/GLC Facelift(W205/253); S/CL(W222/217);Maybach(V222); AMG GT(C190) -> Year (2013-2018) ->
  IC222 (MCU type NEC V850) - Analog (W205/W253 - 2016-2019) FULLY BY OBDII !!!
• IC 222 -> W217/222 pre facelift up to 2016 ->
• IC 222 -> W217/222 pre facelift -> Year (2016-2019) ->
  IC222 (MCU type NEC V850)- Full LCD (W222/W217 -  2016-2018)
• IC 213 analog -> S/CL(W222/217)  Facelift; G(W463 - 2018+); E/CLS/E cabrio(W213/238/257); C/GLC(W205/253 facelift only small LCD)  ->
• IC 213 FULL LCD-> S/CL(W222/217)Facelift;G(W463 - 2018+);E/CLS/E cabrio(W213/238/257);C/GLC(W205/253 facelift) ->
• IC470 (MCU type NEC V850) - Continental (W470 X-class pickup - 2016-2020) ->
• IC447 (MCU type NEC V850) - Continental (W447/W448 - 2016-2020) ->

SD12 -> MB Dash Unlocker



          This is a Software Designed to use together with vediamo/dts/xentry or a simply can device with manual command prompt, that unlocks dashboards IC213/IC222 that have timeout for seed key input active and Not possible to unlock by manual typing seed key.



          With help of this Tool you can simultaneously connect with diagnostic, and proceed the unlock, after this you can proceed with manual command prompt like you already know from previous models. Support for IC213 and IC222 in following models: W205/253/190/290/222/217/213/238/257/463.



         Also IC222 after year 2016 are possible for reading but writing will be locked for the most of them.



          Analogie IC222 after year 2018 will be fully unlocked again

Here you can see the performance of the software in reality:

SD14 -> MB Diagnostic Firewall Unlock



          This is a Software Designed to use together with Vediamo/DTS Monaco/Xentry on latest MB vehicles - W907/118/177/167 and W213/238/257/463/290 years 2019 and later.  In these vehicles you will not be allowed to make adaptations or variantcoding without or else diagnostic functionality.  The tool should be used with OBD2 Y-Adapter - it will disable the Firewall and autodetects if Firewall is active in Vehicle and the type that is used for unlock. All customers who want to do advanced diagnostic in latest MB cars need to use that software.

---



SD10 -> Smart 451, 454, 453/Twingo 3 tool



Software for Smart 451, 454, 453 and Renault Twingo 3 vehicles. With this software you have this functionality:

- Smart 451 - Key programing (Add key or All keys lost)

- Smart 454 - Key programming (Add key  or All keys lost)

- Smart 453/Twingo 3 - Key programming ( if you have wokring key), Odomneter correction, Read/Write VIN, Read/Write flash, Service Reset

- Clear Crash data by OBDII - SPC560 Continental, RH850 Renault, CX23xx Autoliv RC7
- Steering Column - Clear Immo - Clio III, Megane III, Modus, Scenic III, Twingo III







SD11 -> Simplediag - Odometer package

​​​​​KIA: Ceed 2009+; Н4; K5; KX5; Magentis 2009+; Mohave 2017+; Optima 2011+; Optima (K5) 2014+; Optima (D70F3536); Rio(24c16); Rio 2017+; Sorento 2009+(24c16); Sorento 2012+(24c16); Sorento (nec without ext eeprom);  Soul 2010+(24c16); Soul 2014+(24c16); Soul (nec without ext eeprom); Sportage 2010+(24c16); Sportage 2014+( nec without ext eeprom); Sportage 2015+(24c16); Sportage 2016+ (Yazaki nec+25160); Sportage 2016+( nec without ext eeprom)

Hyundai: Accent 2010+(24c16); Accent 2018+( D70F3536); Azera (D70F3536); Creta (nec without ext eep); Elantra (D70F3536); Genesis 2014+(nec without ext eep); Getz (24c16); HB20 (D70F3536); I20 2010+(24c16); I20 2010+(24c16v2); I20 2014+(nec without ext eep); I20 Elite; I25 (24c16); I30 2015+(nec without ext eep); Mistra 2015+ (D70F3536); Tucson 2014+; Solaris 2010+(24c16); Solaris (nec without ext eep); Sonata 9 (D70F3536); Grandeur 2012+(24c16); Verna(24c16); Veloster(24c16); Veracruz 2011+(nec)



Hyndai/Kia ECU: EDC15C2, EDC15C7, EDC17C08, EDC17C57


Great Wall: Haval H6, H8, H9


Proton: Previa, Preve 2012+



SsangYong: Actyon(24c16)



Nissan: Terrano(9s12XHY256); Altima 2013+(Nec+24c16); Serena 2011+(Nec+24c16); Leaf 2011+(Nec+24c16); Teana 2014+(Nec+24c16); Pathfinder 2014+(Nec+24c16)



Renault: Megane 3(Fujitsu 96F386+95160); Megane 3(Fujitsu 96F387+95160); Fluence(Fujitsu 96F386+95160); Fluence (Fujitsu 96F387+95160);



Dacia: Logan 2(9s12XHY256); Logan 2 v2(9s12XHY256); Logan 2 v3(9s12XHY256); Sandero 2(9s12XHY256); Duster 2(9s12XHY256); Duster 2 v2(9s12XHY256); Duster 2 v3(9s12XHY256); Duster 2 v4(9s12XHY256)



Mitsubishi: ASX 2014+ 8100B951(NEC 70F3529); ASX 2014+ 8100B961(NEC 70F3523); Outlander 8100B895 (NEC+93C76); Outlander 8100B889 (NEC+93C76); Outlander 8100C292 (NEC+93C76); Outlander 8100B197 (91F223+93C86); Lancer X, ASX 8100C051 (91F223+93C76); L200 2017+



Toyota:  Auris VDO 2012+(24C16); Auris VDO 2015+(70F35xx); Avensis VDO 2013+(24C16); Avensis VDO 2015+(70F35xx); Corolla VDO 2013+(24C16); Corolla VDO 2015+(70F35xx); Yaris 2017+ (91F061)

Mahindra: Mahindra NuvoSport N8 2015+

Fiat: 500L

Jeep: Renegade 2014+

---

SD18 -> Simplediag - Key Programmer





Key programming software that works with Simplediag hardware. Step by step, we will add programming functionality to different makes and models of cars. Supported models are:

• SsangYoung - Rexton XDi (2001-2008)

• Simplediag HW -> 350 USD
• SD01 -> 340 USD
• SD02 -> 500 USD
• SD03 -> 650 USD
• SD05 -> 500 USD
• SD07 -> 500 USD
• SD08 -> 135 USD
• SD09 -> 1800 USD
• SD10 -> 300 USD
• SD11 -> 180 USD
• SD12 -> 500 USD
• SD13 -> 1550 USD
• SD14 -> 500 USD
• SD18 -> 120 USD
